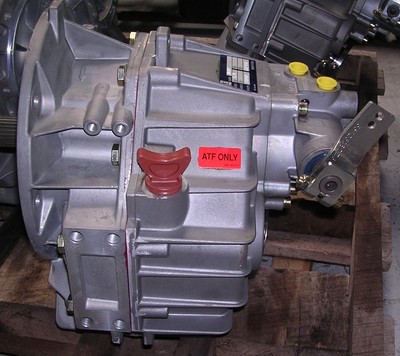

| Model Click on Model to see more info | Max HP Diesel | ||||
| ZF 6 M Replaces the ZF 5M (HBW 50) | 2.045 1.864 2.722 2.150 | Direct | Vertical Offset Mechanical | 27 @3600 23 @3600 | Discontinued |
| ZF 10 M (HBW 100) | 1.482 1.864 2.045 1.864 2.722 2.150 | Direct | Vertical Offset Mechanical | 51 @3600 46 @3600 33 @3600 | Discontinued |
| ZF 12 Hydraulic (HSW 125 H) | 2.136 1.955 2.632 1,955 | Direct | Vertical Offset Hydraulic | 67 @3800 57 @3800 | |

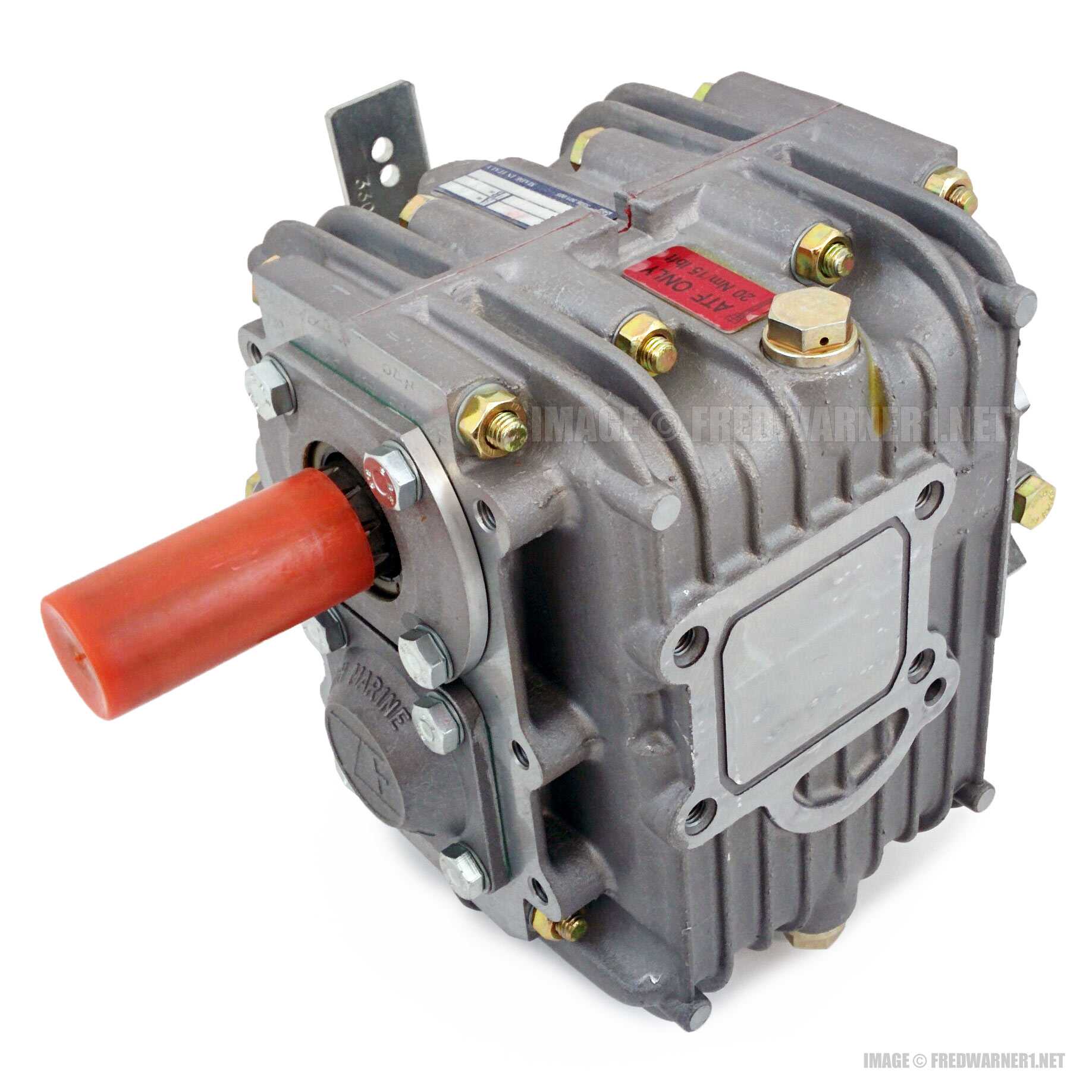

| ZF 12 M (HBW 125) | 2.136 1.955 2.632 1.955 | Direct | Vertical Offset Mechanical | 63 @3600 54 @3600 | |
| ZF 15 MA (HBW 150 A) | 1.875 1.955 2.136 1.955 2.632 1.955 | Direct | 8 deg. Down Angle Mechanical | 74 @3800 67 @3800 57 @3800 | |
| ZF 15 M (HBW 150) | 1.556 1.955 1.875 1.95 | Direct | Vertical Offset Mechanical | 74 @3800 | |
| ZF 15 MIV (HBW 150 V) | 2.134 2.224 2.718 2.224 2.995 2.224 | Direct | 15 deg. V-Drive | 74 @3800 57 @3800 | |
| ZF 25 M (HBW 250) | 1.880 2.095 2.273 2.095 2.737 2.722 | Direct | Vertical Offset Mechanical | 107 @3800 107 @3800 90 @3800 | |
| ZF 25 MA (HSW 250 A) | 2.227 2.737 2.737 2.737 | Direct | 8 deg. Down Angle | 107 @3800 90 @3800 | |
| ZF 25 Hydraulic (HSW 250 H) | 1.970 1.970 2.800 2.800 | Direct | Vertical Offset Hydraulic | 165 @3800 128 @3800 | |
| ZF 25 A | 1.548, 1926, 2.292 2.714 | Direct | 8 deg. Down Angle | 165 @3800 133 @3800 128 @3800 | |
| ZF 30 M | 2.15, 270 | Direct | Vertical Offset Mechanical | 123@3800 | |
| ZF 45 A (HSW 450 A2) | 1.256, 1.514 2.034, 2.435 | Direct | 8deg. Down Angle | 240 @3800 | |
| ZF 45-1 (HSW 450 H2) | 2.200, 2.512 3.031, 3.74 | Direct | Vertical Offset | 240 @3800 | |
| ZF 45 C (HSW 450 D) | 1.0 | Direct | Co-Axial | 357 Gas @4800 283 @3800 Diesel | |
| ZF 45 IV | 1.20, 1.46 | Direct | 20 deg. V-Drive | 283 @3800 | |
| ZF 63 (HSW 630 H1) | 1.25,1.51, 1.75,1.93 2.48, 2.78 | Direct | Vertical Offset | 363 @3800 301 @3800 | |
| ZF 63 A (HSW 630 A1) | 1.22, 1.56, 2.04, 2.52 2.68 | Direct | 8 deg. Down Angle | 363 @3800 304 @3800 317 @3800 | |
| ZF 63 IV (HSW 630 V1) | 1.29, 1.56, 2.0 2.47 | Direct | 12 deg. V-Drive | 363 @3800 336 @3800 | Replaced with ZF 68IV |
| ZF 63 C (HSW 630 D) | 1.0 | Direct | Co-Axial | 363 @3800 458 @ 4800 Gas | |
| ZF 68 IV | 1.29, 1.56, 2.0 2.47 | Direct | 12 deg. V-Drive | 400 @3800 375 @3800 | |
| ZF 80 IV (HSW 800 V1) | 1.21, 1.39, 1.64, 2.01 2.49 | Direct | 12 deg. V-Drive | 436 @3300 380 @3300 | Replaced with ZF 85IV |
| ZF 80-1 A (HSW 800 A2) | 1,2, 1.41, 1.57, 1.96 2.500 2.850 | Direct | 8 deg. Down Angle | 436 @3300 399 @3300 376 @3300 | Replaced with ZF 85A |
| ZF 85 A (HSW 800 A3) | 1.567, 1.962, 2.50 | Direct | 8 deg. Down Angle | 493 @3300 | |
| ZF 88 C (HSW 880 D) | 1.0 | Direct | Co-Axial | 408 @3300 593 @4800 Gas | |
| ZF 85 IV (HSW 800 V2) | 1.644, 2.01, 2.49 | Direct | 12 deg. V-Drive | 493 @3300 | |
| ZF 220 (IRM 220 PL) | 1.0, 1.128*, 1.237*, 1.4*, 1.5, 1.96, 2.47 3.0 | Direct | Vertical Offset | 423 @3200 367 @3200 | |
| ZF 220 A (IRM 220 A-1) | 1.23, 1.53, 1.75, 2.04 2.45 | Direct | 10 deg. Down Angle | 400 @3200 367 @3200 | |
| ZF 220 V (IRM 220 V-LD) | 1.23, 1,53,1.75, 2.04 2.45 | Remote | 12 deg. V-Drive | 400 @3200 367 @3200 | |
| ZF 280-1 | 0.814*, 1.00, 1.056, 1.214, 1.514, 1.719* 2.00 2.478 3.00* | Direct | Vertical Offset | 525 @2800 ' ' 453 @2800 429 @2800 | |
| ZF 280 IV (IRM 280 V-LD-1) | 1.252, 1.561 1.772, 2.06 2.556, 3.094 | Direct | 14 deg. V-Drive | 525 @2800 | |
| ZF 280-1A (IRM 280 A2) | 1.118, 1.483,1.769, 2.0, 2.227, 2.476 | Direct | 7 deg. Down Angle | 525 @2800 453 @2800 | |
| ZF 285 A | 1.20, 1.33, 1.48, 1.75 1.96 2.20, 2.50 | Direct | 7 deg. Down Angle | 588 @2800 538 @2800 517 @2800 | Replaced with ZF286A |
| ZF 286 A | 1.20, 1.33, 1.48, 1.75 1.96 2.20, 2.50 | Direct | 7 deg. Down Angle | 644 @2800 565 @2800 517 @2800 | |
| ZF 286-1 | 1.23, 1.50, 1.77 1.96 .92, 1.00, 2.26 2.248, 2.91 | Direct | Vertical Offset | 759@3200 726@3200 666@3200 574@3200 | |
| ZF 286 IV | 1.26, 1.53, 1.81, 2.01. 2.33, 2.539 | Direct | 14 deg V-Drive | 759@3200 717@3200 492@3200 | |
| ZF 301 A | 1.19, 1.516, 2.00, 2.30, 2.55, 2.90 | Direct | 10 deg. Down Angle | 396@2300 432@2500 482@2800 | |
| ZF 301 C | 1.004, 1.106, 1.179, 1.236, 1.296, 1.408, 1.862, 2.137, 2.694 | Direct | Co-Axial | 362 @2100 431 @2500 482 @2800 | |
| ZF 311 | 0.804,1.00, 1.477, 1.946, 2.548, 3.048, 3455 | Direct | 1.18' drop center | 548 @ 2100 600 @ 2500 652 @ 2800 | |
| ZF 311 A | 1.092, 1.501, 1.759, 2.033, 2.492 | Direct | 7 deg. Down Angle | 548 @ 2100 600 @ 2500 652 @ 2800 |
Zf Hurth 630v Manual
OTHER MODELS AVAILABLE ON REQUEST
Manuals
Zf Hurth Transmission Parts
Repair Manual ZF 63 A thru ZF 85 A
Repair Manual ZF 45 C • ZF 63 C • ZF 88 C
Repair Manual ZF 63 IV • ZF 80 IV
Repair Manual ZF 220A - ZF 225 A
Repair Manual ZF 3M • 30M
Zf Hurth 630v Manually
All specs and prices subject to change without notice.
Higher horsepower units are available, please call or E-mail for price.
Call or E-mail for prices on options. (OilCooler Kits, Trolling Valves, Mounting Brackets, Mounts and Drive Dampers, HousingAdaptors, Electric Shift Controls)
